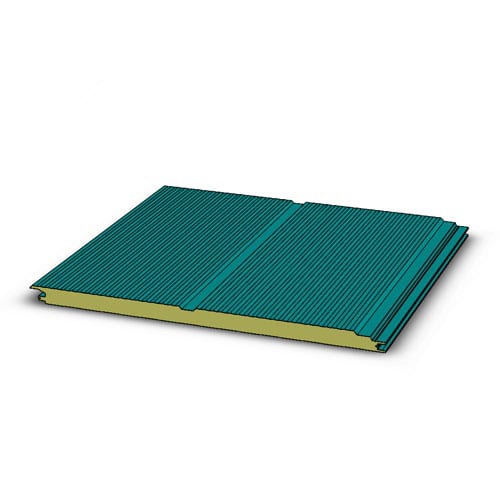

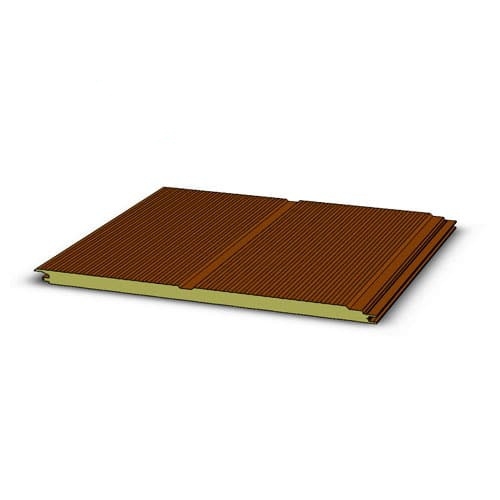

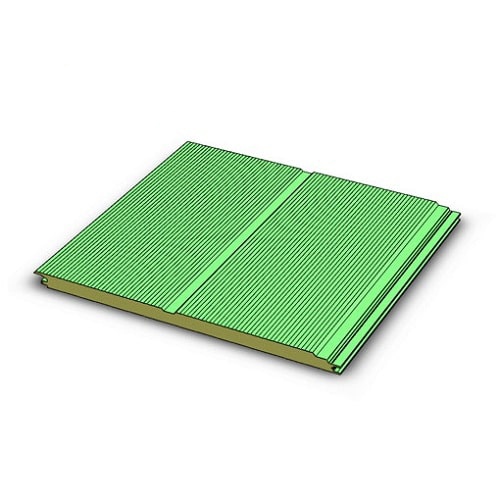

1. PRODUCT DESCRIPTION

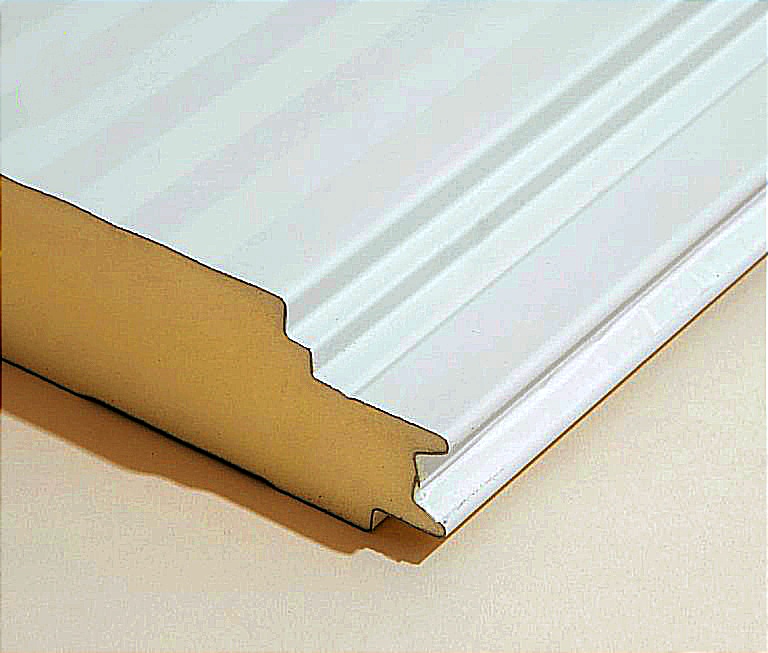

The structure consists of 3 layers: Corrugated iron/ stainless steel/ aluminum + PU + corrugated iron/ stainless steel/ aluminum.
Shell layer: 2 layers of galvanized/ aluminum zinc or stainless steel/ aluminum foil are corrugated and sprayed with scratch-resistant PE film.
PU layer (Polyurethane): PU JAVTA outside panel has a thickness of 50mm – 200mm.
PU source is imported 100% from Europe with high quality, outstanding PU layer with excellent sound and heat insulation. Fire resistance up to 2 hours at a temperature of 200°C. The PU layer is soft, smooth, tight, does not condense air bubbles to increase the load capacity, limit moisture penetration, prevent heat loss, sweating.
2. HOW TO INSTALL
3. PRODUCT FEATURES
Produced on modern European production line technology with strict output quality control process. Javta PU Panel is one of the building materials with many absolute advantages. Thereby, it helps to increase the quality of the products preserved by the completed constructions with PU panels such as: agricultural products, aquatic products, medicines,…
- Good sound and heat insulation, effective against fire spread
The foam core is pressed tightly against the shell, helps the PU layer to be soft, smooth and tight, creating a sustainable structure, outstanding waterproofing, and preventing heat loss. Therefore, the works using PU panel in addition to being able to resist heat well also helps commodity products to retain value even when harvested for a long time.
Javta Pu panel layer helps cover, with tight joints to help ensure the working environment, warehouse,…avoid being affected by the impact of the environment and weather. Prevent heat absorption in summer and release heat in winter to increase heat insulation. Outside Javta PU panel has excellent sound insulation and sound absorption ability, sound waves when meeting PU panel will move in a zigzag line and decrease gradually, suitable for projects with high requirements for sound insulation.
Heat resistant up to 700°C. Fire isolation, fire spread, prolong fire protection time.
- High resistance, high durability
The corrugated iron layer comes from reputable corrugated iron brand in the market such as Hoa Sen, Hoa Phat, SSC, TVP, Lien Doanh,…covers the outside to increase the hardness and durability of the product.
With a large density of PU, the PU panel increases the durability of the project, cost saving purlins, frames.
High strength, good load capacity, service life up to 50 years.
Javta PU panel also withstands strong winds up to 300km/h.
- Javta PU panel has a high aesthetic
2 super durable and waterproof corrugated iron, anti-abrasion, antibacterial, anti-dust, bright colors, the paint is durable in all weather. PU surface is easy to clean, PU porous layer is not decomposed, moldy.

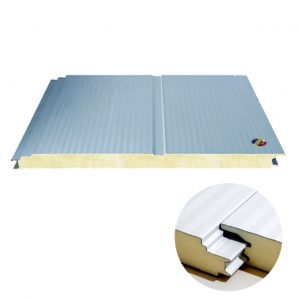

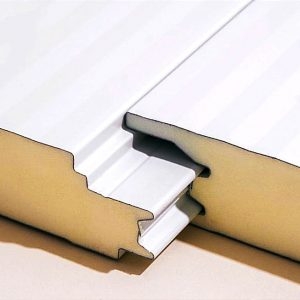

Screw concealed joints, with a variety of color palettes increase the aesthetics of the project.
JAVTA PU panel can create waves, trench or flatten according to the aesthetic requirements of each project.
- Easy construction, cost saving
Lightweight structure for easy installation, save the cost of foundation construction, shorten the construction time, increase work completion progress.
Installation does not require wide position and high workmanship, does not affect the current construction status. Ability to change the position of doors, space expansion, more floors… even after installation.
- PU panel is friendly with environment
Contains no greenhouse gases, toxic substances, high reuse ability, ensure workers’ health, safe when storing food, environmental protection.
4. SPECIFICATIONS
|
OUTSIDE PU PANEL BASIC SPECIFICATIONS SHEET |
||||
| Ordinal number | Classify | Unit | Method | Result |
| 1 | Basic structural components | Corrugated iron/aluminum/stainless steel+PU
+corrugated iron/aluminum/stainless steel |
||
| First layer (Steel) | ||||
| 2 | Corrugated board thickness | mm | 0.35/0.40/0.45/0.50/0.55/0.60 | |
| 3 | Corrugated iron color | According to the company’s color chart | ||
| 4 | Galvanized background corrugated iron/aluminum zinc | JIS G3312-G3322 standard | ||
| 5 | Coefficient of thermal conductivity | w/m°C | 7194-2000 | 0,028 |
| 6 | Product size | mm | 1048.6mm | |
| 7 | Effective size | mm | 1000mm | |
| Second layer (PU) | ||||
| 8 | PU proportion | kg/m³ | Vietnam standard 187-1986 | 40±3 |
| 9 | Moisture absorption rate | % | Vietnam standard 359-70 | 0,38 |
| 10 | Soundproofing ability | dB | Average frequency of the octave band | 27,5 |
| 11 | Load capacity | kg/cm² | JAVTA technical standards | 3,8 |
| 12 | Water absorption rate | % | Vietnam standard 6530 | 0,74 |
| 13 | PU layer thickness | mm | JAVTA technical standards | 30/50/75/100/125/150/200 |
| Third layer | Corrugated iron/stainless steel/aluminum | |||
5. APPLICATION OF PU JAVTA OUTSIDE PANEL
Construction works in dangerous locations, hard to move and need urgent, fast progress,PU panel will be the most effective and reasonable solution because of its fast construction ability, easy assembly and especially sound insulation, heat insulation, fire spread resistance:
- Prefab house, prefabricated steel house
- Clean room: medicine, electronics, lab…
- Factories: textiles, handicrafts…
- Hospital, site management office…
- Cold storage, cool storage, frozen cellar…
6. TYT VIETNAM-reputable panel supplier
Nearly 20 years working in the construction field, TYT Vietnam and Javta factory have been affirming the quality of products and services in the hearts of customers. Our panel products has been present throughout the large and small projects across the country such as TNG Thai Nguyen Garment Factory, ITM Bac Ninh Factory, Sao Viet Mechanical Factory,…The panels also provide a solution against heat, noise canceling for many Vietnamese families.
Project sustainability and customer satisfaction is always the motivation for us to work harder every day. TYT Vietnam hopes to provide panels for more projects, bring sustainable values to the community.
Please contact us for detailed advice!
